Pipit NC with 6F KBT

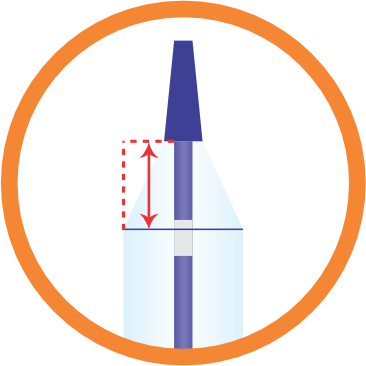

Shoulder length (mm)

56 SKUs' with 6F KBT
6F KBT Length (mm)
6 8 10 12 15 20 25 30
Diameter (mm)
2.00 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
2.25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
2.50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
2.75 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
3.00 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
3.25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
3.50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Tip profile(mm)




Pipit NC has the lowest tip profile


Comprehensive trackability

  • Requires 2.6x less force to track through tortuous anatomy

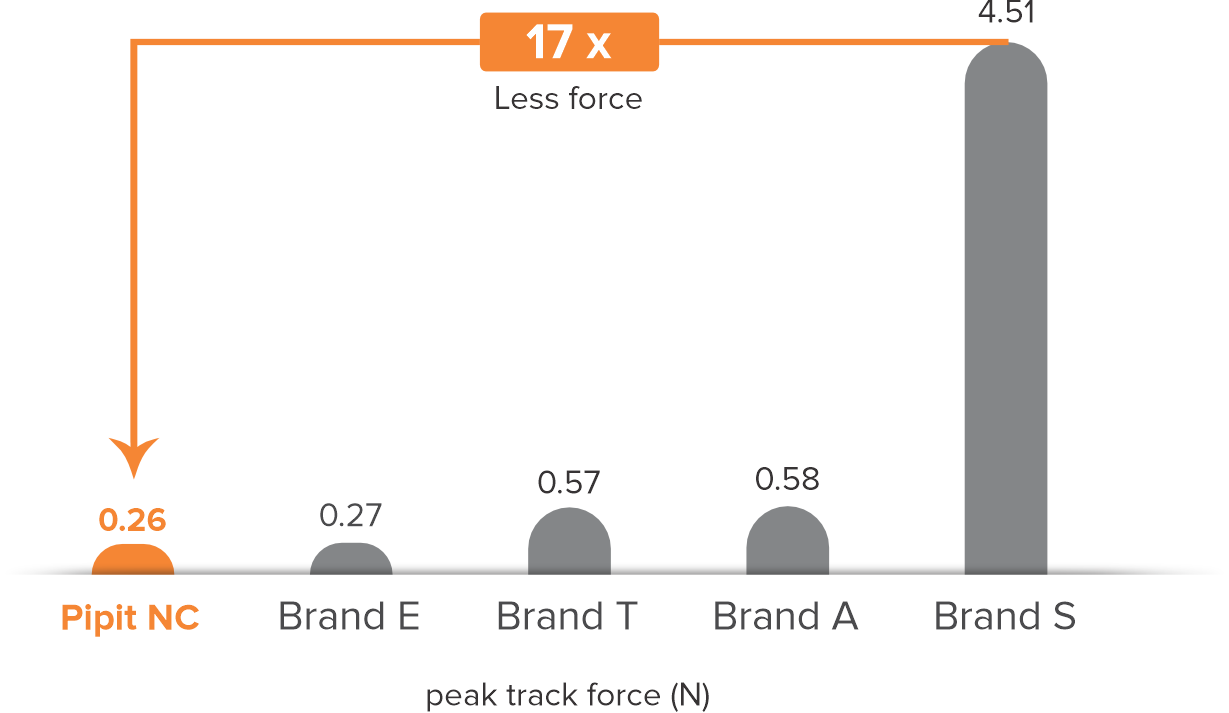

  • Pipit NC requires 17x less force
  • Delivers reliable outcome in challenging, long lesions with very less force

  • Pipit NC requires 3.4x less force
  • Least track force for a smooth retrieval reduces guide catheter displacement
Technical specifications
Balloon material Multi-layered polyamide
Balloon fold Tri-fold
Hydrophilic coating Selective hydrophilic coating at distal shaft including balloon tip
Tip entry profile 0.016" (0.41 mm)
Shaft diameter Proximal 1.95F,Distal 2.67F
Catheter length 140 cm
Rapid exchange length 25 cm
Markers on the proximal shaft 90 cm & 100 cm
Maximum recommended guidewire 0.014" (0.36 mm)
Guide catheter compatibility 5F
KBT compatibility 6F up to 3.5 mm diameter, all lengths
Nominal pressure 12 atm
Rated burst pressure 20 atm (18 atm for 5 mm)
Size matrix and ordering information
Pipit NC
SKUs#		 Length (mm)
6 8 10 12 15 20 25 30
Diameter (mm)
2.00 FGNT200006 FGNT200008 FGNT200010 FGNT200012 FGNT200015 FGNT200020 FGNT200025 FGNT200030
2.25 FGNT225006 FGNT225008 FGNT225010 FGNT225012 FGNT225015 FGNT225020 FGNT225025 FGNT225030
2.50 FGNT250006 FGNT250008 FGNT250010 FGNT250012 FGNT250015 FGNT250020 FGNT250025 FGNT250030
2.75 FGNT275006 FGNT275008 FGNT275010 FGNT275012 FGNT275015 FGNT275020 FGNT275025 FGNT275030
3.00 FGNT300006 FGNT300008 FGNT300010 FGNT300012 FGNT300015 FGNT300020 FGNT300025 FGNT300030
3.25 FGNT325006 FGNT325008 FGNT325010 FGNT325012 FGNT325015 FGNT325020 FGNT325025 FGNT325030
3.50 FGNT350006 FGNT350008 FGNT350010 FGNT350012 FGNT350015 FGNT350020 FGNT350025 FGNT350030
3.75 FGNT375006 FGNT375008 FGNT375010 FGNT375012 FGNT375015 FGNT375020 FGNT375025 FGNT375030
4.00 FGNT400006 FGNT400008 FGNT400010 FGNT400012 FGNT400015 FGNT400020 FGNT400025 FGNT400030
4.50 FGNT450006 FGNT450008 FGNT450010 FGNT450012 FGNT450015 FGNT450020 FGNT450025 FGNT450030
5.00 FGNT500006 FGNT500008 FGNT500010 FGNT500012 FGNT500015 FGNT500020 FGNT500025 FGNT500030

upto 3.5 mm diameter for all lengths.

NP = Nominal Pressure, RBP = Rated Burst Pressure, KBT = Kissing Balloon Technique, GC = Guide Catheter

#SKU- Stock Keeping unit

Disclaimer: Please note that the 6F KBT is CE approved.By accessing this content, users acknowledge their responsibility to ensure adherence to local laws and guidelines within their respective jurisdictions.

Pipit NC is a trademark of Sahajanand Medical Technologies Limited. Specifications are subject to modifications, revisions, and improvements. Bench test results may not necessarily be indicative of clinical performance. Tests performed by and data on file at Sahajanand Medical Technologies Limited. Testing was conducted on Pipit NC and respective brands with a 3.50 mm x 15 mm balloon. Data source: IFU/marketing collaterals of respective brands. Tip and crossing profile tested on a 3.00 mm balloon.

Instructions for Use(Multilanguage)
